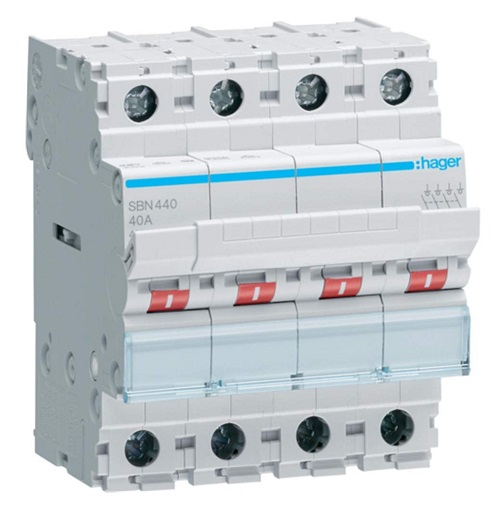

HAGER 4-Pole 40A Isolator SBN441N

Architecture Type Of Order: Break Switch Neutral Position: Without Neutral Number Of Poles: 4 P Type Of Pole: 4 P Main Electrical Features Frequency: 50/60 Hz Rated Operational Voltage Ue: 400 V Voltage Rated Insulation Voltage: 440 V Type Of Voltage Input 1: Ac Rated Impulse Withstand Voltage: 6000 V Electric Current Rated Operational Current In Ac21 Category A: 40 A Rated Operational Current In Ac21Category B: 40 A Acceptable Current Rating With Ac22 Category A: 40 A Acceptable Current Rating With Ac22 Category B: 40 A Rated Operational Current In Ac23 Category A: 40 A Acceptable Current Rating With Ac23 Category B: 40 A Short-Circuit Current With Gi-Gg Fuses: 600 A Closing Ability With 400V In Ac23A: 846 A Rated Short-Circuit Making Capacity Icm Under 415V Ac According Iec 60947-3: 846 A Rated Short-Time Withstand Current 1S: 0,6 Ka Thermal Rated Current Outside Of Housings: 40 A Power Power Loss Per Pole At In: 1,1 W Total Power Loss Under In: 4,4 W Endurance Electrical Durability At Nominal Load In Ac21In Operating Cycles: 5000 Electrical Durability At Nominal Load In Ac22 In Operating Cycles: 5000 Number Of Mechanical Operations: 60000 Dimensions Depth Of Installed Product: 69 Mm Height Of Installed Product: 83 Mm Width Of Installed Product: 70 Mm Installation, Mounting Tightening Torque: 2,8Nm Connection Cage Clamp Position: In Line Connection Cross-Sect. Rigid Cable: 2,5 / 25Mm² Connection Cross-Sect. Flexible Cable: 2,5 / 16Mm² Type Of Connection: With Screw Equipment Quantity Of No Contacts: 4 Standards Standard Text: Iec 60947-3, Iec/En 60669-2, Iec/En 60669-4 European Directive Rohs: Voluntary Compliance European Directive Weee: Concerned Safety Protection Index Ip: Ip20 Use Conditions Degree Of Pollution According To Iec 60664 / Iec 60947-2: 2 Altitude: 2000 M Storage Temperature: -40 To.
