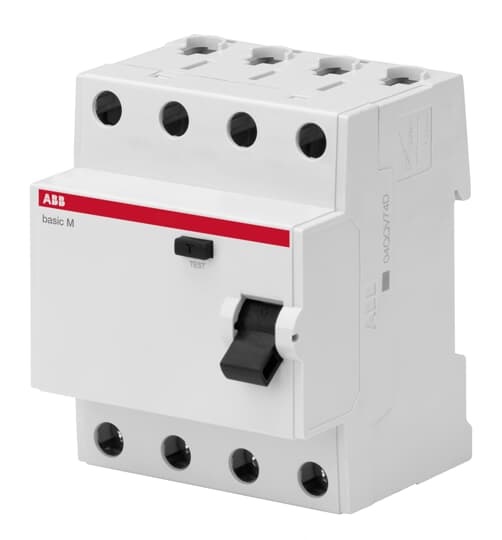

ABB ELCB 4P 40A 100mA

Technical

• Standards:IEC 61008
• Type of Residual Current:AC type
• Rated Voltage (Ur):230/400 V
• Rated Operational Voltage:230 / 400 V AC
• Rated Insulation Voltage (Ui):500 V
• Rated Impulse Withstand Voltage (Uimp):4 kV
• Rated Current (In):40 A
• Rated Residual Current:100 mA
• Rated Service Short-Circuit Breaking Capacity (Ics):1 kA
• Maximum Surge Current:0.25 kA
• Leakage Current Type:AC
• Rated Frequency (f):50 / 60 Hz
• Power Loss:at Rated Operating Conditions per Pole 3.2 W
• Number of Poles:4
• Operating Characteristic:Instantaneous
• Position of Neutral Terminals:Right
• Mounting Type:DIN rail
• Options Provided:None
• Accessories Available:No
• Rated Cross-Section:4 – Multi-Wired 10…25 mm²
  1 – Solid-Core 25…25 mm²

Environmental

• Ambient Temperature:-25…55 °C
• Ambient Air Temperature:Operation -5 … +40 °C
  Storage -40 … +70 °C
• Degree of Protection:IP2X
• RoHS Status:Following EU Directive 2011/65/EU
• Environmental Information:Refer to RoHS

Technical UL/CSA

• Short-Circuit Current Rating (SCCR):0.1 A
